0.4 Mm Thickness Printed Tin Plate ETP Electrolytic Tinplate For Cans Containers
| Product Details | |
| Product Name | SPTE tin plate |
| Standard | ASTM,AISI,DIN,EN,GB,JIS |
| Length | Customized |
| Thickness | 0.15-0.8mm |
| Width | Customized |
| Surface | B,R,M,S |
| Material | SPTE |
| Normal Thickness(厚) | Normal Width(宽) | Normal Length(长) | Temper Grade(厚度) | Tin Coat |
| 0.16mm-0.18mm | 700mm-1020mm | C | DR9CA-DR8CA | 2.8/2.8 |
| 0.16mm-0.18mm | 700mm-1020mm | C | T5CA-t4CA | 2.8/2.8 |
| 0.19mm-0.2mm | 700mm-1020mm | C | T4CA-T5CA | 2.8/2.8 |
| 0.21mm-0.25mm | 700mm-1020mm | C | T2.5BA-T2.5CA | 2.8/2.8 |
| 0.21mm-0.25mm | 700mm-1020mm | C | T3CA-T4CA | 2.8/2.8 |
| 0.26mm-0.30mm | 700mm-1020mm | C | T2.5BA-T2.5CA | 2.8/2.8 |
| 0.32mm-0.38mm | 700mm-1020mm | C | T2.5BA | 2.8/2.8 |
| 0.40mm-0.43mm | 700mm-1020mm | C | T2.5BA-T3CA | 2.8/2.8 |
| 0.45mm-0.50mm | 700mm-1020mm | C | T2.5BA-T3BA | 2.8/2.8 |
| 0.21mm-0.25mm | 700mm-1020mm | C | T1BA | 2.8/2.8 |
| 0.26mm-0.28mm | 700mm-1020mm | C | T1BA | 2.8/2.8 |
| 0.21mm-0.38mm | 700mm-1020mm | C | T1BA | 2.8/2.8 |
Chemical Composition
| Hardness Range | ||
| Hardness Mark | Target Hardness | Application |
| T-1 | 49±3 | Particularly suitable for soft pot processing |
| T-2 | 53±3 | Particularly suitable for general soft pot perocessing |
| T-2.5 | 55±3 | Applicable to soft gengeral cans |
| T-3 | 57±3 | Suitable for high haedness cans |
| T-3.5 | 59±3 | Applicable to the general tank that requires toughness |
| T-4 | 61±3 | Suitable for general cans requiring greater toughness |
| T-5 | 65±3 | It is suitable for large tank and container inner body |
| DR-8 | 73 | Applicable to certain rigid beer, cans |
| DR-9 | 76 | Applicable to certain rigid beer, cans and DRD cans |
| DR-9M | 77 | Applicable to certain rigid beer, cans and DRD cans |
| DR-10 | 80 | Suitable for high-end rigid cans and covers |
Product detail

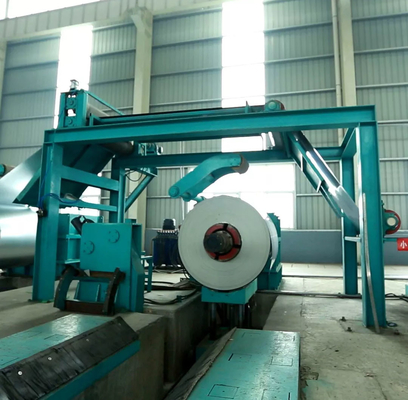

Factory Show
