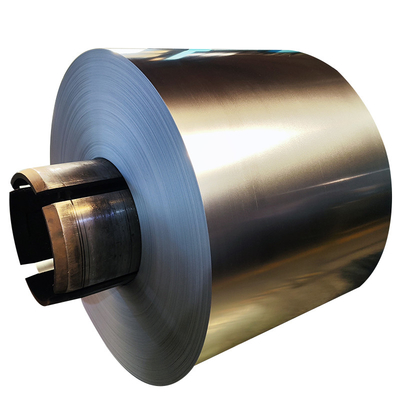

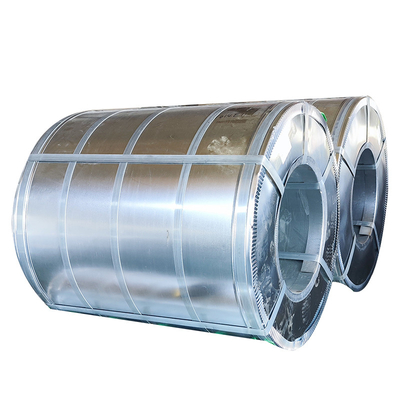

DX51D Z275 Z350 Hot Dipped Galvanized Steel Coil Aluzinc AZ150 Steel Galvanized Sheet For Car For Building
Product Description
PPGI/HDG/GI/SECC DX51 ZINC Cold rolled/Hot Dipped Galvanized Steel Coil/Sheet/Plate/Strip
Steel Gradespcc , spgcStandardJIS G -3312,ASTM A -755 ,EN -10169, IS -14246,G300-G550zinc Coating
Z30-Z140 AZ20-AZ160
color coating7-30umCertificatesISO 9001 / ISO 18001 / ISO 14001 / BSI / UL / FMTrade terms
FOB, CFR, CIF, EXW, FCA
Payment termsT/T, LCDelivery time35-50 days (based on quantity) after receiving advanced payment by T/T or LC .Main marketSoutheast Asia, South Asia, Middle East, Europe, Middle&South America, Africa and Oceania
Specification
|
Product Name
|
Hot Dipped Galvanized Steel Coil,Zinc Coated Steel ,GIHDGI
|
|
Standard
|
EN10346, JIS G3302, ASTM A653,AS 1397,GB/T 2518
|
|
Steel Grade
|
Dx51D, Dx52D, Dx53D, DX54D,DX55D,DX56D,DX57D, S220GD, S250GD, S280GD, S320GD,S350GD, S390GD,S420GD,S450GD,,S550GD,
SGHC, SGH340, SGH400, SGH440, SGH490,SGH540, SGCC,SGCH,SGCD1, SGCD2, SGCD3, SGCD4,SGC340, SGC400 , SGC440, SGC490,SGC570;
CS-A,CS-B,CS-C,Grade 33,grade 37.grade 40,garde 50,grade60,grade70,grade80
G1,G2,G3,G250,G300,G450,G550
As Requirement
|
|
Type
|
Coil/Sheet/Plate/Strip
|
|
Thickness
|
0.12mm-6.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm
|
|
Width
|
600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm
|
|
Zinc Coating
|
Z30g/m2-Z600g/m2
|
|
Surface Structure
|
Normal spangle (N),, spangle-free(FS),Zero Spangel
|
|
Surface Structure
|
Oiled (O),Passivated(C),Passivated and oiled (CO) ,Sealed (S),Phosphate (P),Phoaphte and oiled (CO)
|
|
Coil Weight
|
3 Tons -8Tons
|
|
Coil ID
|
508mm/610mm
|
product technique
Galvanizing steel production line with annual output of 200000 tons, which adopts the most advanced American GBNB and Germany's Siemens electrical control systems. it can produce ZERO zinc spangle, small-zinc spangle and common zinc spangle etc.Thickness from 0.125 mm to 4.5mm, and width from 500 mm to 1250 mm, and zinc coating from 40 - 275 g/m2, surface passivation and oil -coating can be performed. In addition, the company introduces a slitting machine, which can meet the customers' different requirements on the width. And Two roll-formed machines , which can produce wave roofing sheet and Trapezoidal corrugated sheet.
